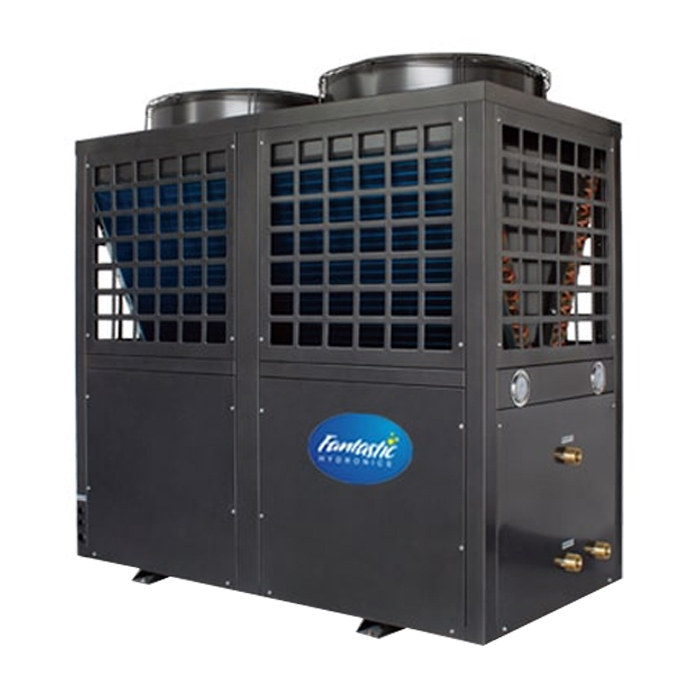

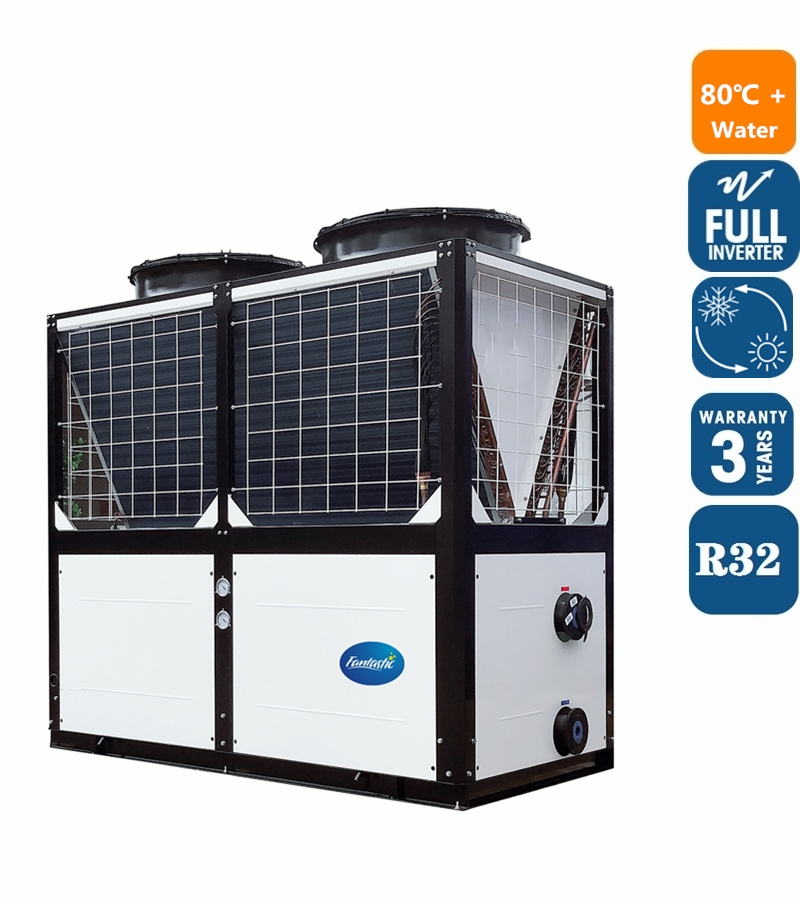

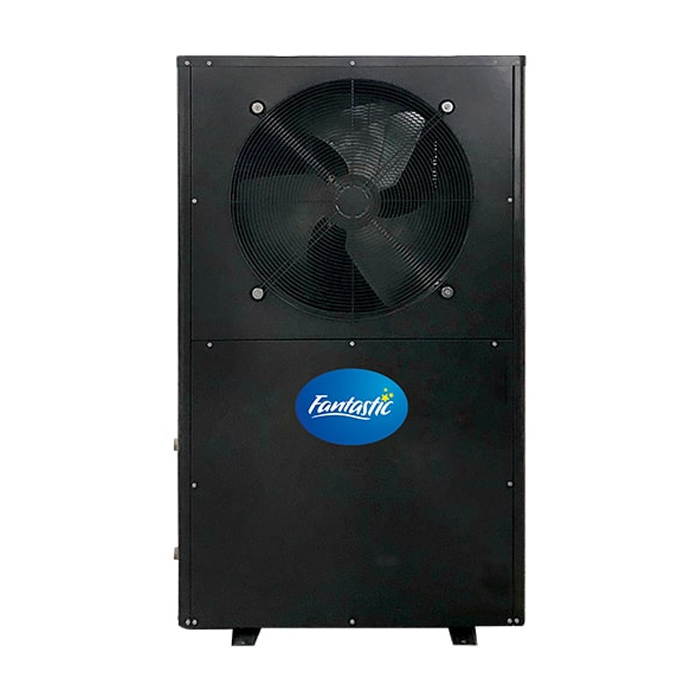

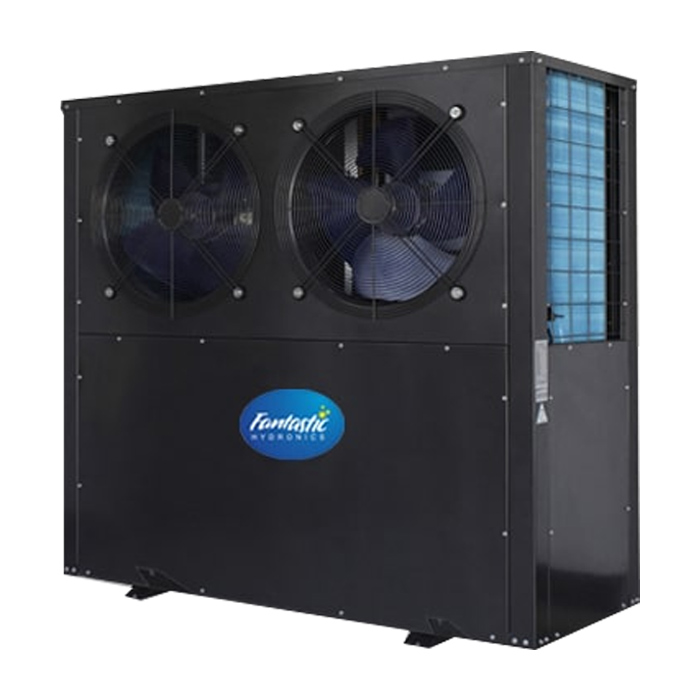

Air to Water 2-stage High Temperature Heat Pump

l Core Strengths

The best solution for high-temperature hot water and heating demand by FANTASTIC 2-Stage high-temperature heat pump

FANTASTIC air source  2-stage high-temperature heat pump is combining an R32 / R410A  system + R134A refrigerant system. R410a system provide good working condition to R134a system and with FANTASTIC patent control logic, it can make  75℃ ~ 85 ℃ hot water.

Besides, it's the best solution for a heat pump in a cold area, our high temperature can provide stably enough heating capacity and high water temperature even if the outdoor temperature is -35℃.

Using high efficient scroll compressor, patented high efficient shell and tube heat exchanger, plate heat exchanger, internally threaded copper pipe hydrophilic aluminum foil evaporator with 20% larger heat exchange area than a traditional unit, large-diameter fan with large air volume, and low noise vertical air outlet design.

30% higher heating efficiency than traditional heat pump units under low temperature, stable and reliable operation with low noise.

Applying technical grade linear electronic expansion valve to control the refrigerant flow of both stages to ensure high efficient refrigerant flow adjustments under different ambient temperatures and water temperatures for stable and reliable operation. And at the same time, to eradicate the weakness of poor linear adjustment of the mechanical expansion valve and easy refrigerant leakage.


Its COP is high and much energy saving (more than 70% power conservation) than other heating ways such as traditional electric boilers.

l FANTASTISC Unique 2-stage Design

Thanks for FANTASTIC unique 2-stage heating technology ( R32 / R410A system + R134a system), FANTASITC high temperature heat pump can make hot water up to 75~80℃. It’s good and popular for the old house with radiators that need high temperature hot water to replace the old gas heater or electric heater. And it’s also available for other industrial and agricultural uses.

l Stable 75 °C ~ 85°C with DC inverter technology

l Stable Operation Under -35℃ Ambient Temperature

Thanks for the 2-stage system, FANTASTIC high temperature heat pump has a wide working ambient temperature range: -35℃~43℃, that make the unit available at any weather to meet the demands of summer cooling, winter heating and hot water throughout the year.

l Smart Defrost Technology

Intelligent defrost technology to reduce the defrosting times and thus extend the unit heating time. Rapid defrost to shorten defrost time can help to recover supply water temperature quickly, improve the unit heating efficiency and maintain comfort.

l Spiral Type High Efficient Heat Exchanger

FANTASTIC spiral type high efficient heat exchanger is with increased heat exchanger area to improve the heat transfer ability and evenly distribute over the surface of the copper, reducing water film, and improving efficiency.

l Special Design for Anti-freezing and Anti-frosting in the Bottom of Air Exchanger

With 2-layer separate design, top layer is for fan and evaporator, bottom layer is for compressor and heat exchanger, and block up slopes on 2 sides of button + anti-freezing element on the top layer + the use of special liquid distribution technology. When unit is working in heating mode, the temperature of refrigerant in the air exchanger’s bottom copper tube will not decrease in order to ensure no frosting on it and smooth drainage.

l   Manufacturing Photo
