Air to Water-EVI Heat Pump

Main Features:

• R32 or R410a

• Monoblock or split type for option

• Can work under - 25C ambient

• Function: Heating / Cooling / Domestic Hot Water

• Intelligent Economic Control

• Superheat Management

• FANTASTIC particular EVI control

• High Efficient FANTASTIC customize heat exchanger

• Special design for anti-freezing and anti-frosting in the bottom of air exchanger

Applications:

Residential and commercial hot water, heating / cooling: House, Apartment, Vila, Hotel, Hospital, Spa, Holiday Center, and so on.

Core Strengths

Stable operation under -25 ℃ ambient - FANTASTIC EVI heat pump with smart EVI control way and EVI structure could work under ambient temperature range: -25 degree~43 degrees.

18 years experience - the FANTASTIC company has manufactured over 48,000 EV heat pumps worldwide.

Affordability - As the high COP of FANTASTIC EVI air source heat pump, it can heat your house for about 25% of the cost of heating with gas, high COP means more energy saving.

Ex. $ 1 input - $ 4.55 of energy output at COP of 4.55

Long life with famous brand high-quality components - FANTASTIC air source EVI heat pump equipped with Panasonic compressor, SHIBAURA fan motor, and WILO water pump, SWEP plate heat exchanger, and with an element under button plate, and so on. All the heat pump with famous international brand components.

PRODUCT DETAIL

Wide Heating Capacity Range

The heating capacity of FANTASTIC EVI heat pump is up to 175 Kw or larger, suitable for different pool size demands, no matter for household or commercial projects.

PRODUCT DETAIL

Safe Operation Under -25℃ Ambient Temperature

Wide working ambient temperature range: -25℃~43℃; Intelligent control, any weather available, automatic load adjust under different climate and environment to satisfy the demands of summer cooling, winter heating and hot water throughout the year.

PRODUCT DETAIL

Smart Control By Wifi App

The intelligent CAREL controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application end. With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.

Super-Heat Management

FANTASTIC EVI heat pump increases the heating capacity and extends the operating life by TEV, and increases COP and limits the discharge temperature under safe level by EEV, and lower the defrosting time to make heat pump put more time on heating and more energy-saving.

PRODUCT DETAIL

FANTASTIC Particular EVI Control

By FANTASTIC particular EVI control and EVI structure and Copeland / Panasonic R410a EVI compressor, heat pump is more reliable under low ambient temperature and increase 25% heating capacity and 10% higher heating COP for superior seasonal efficiency.

PRODUCT DETAIL

FANTASTIC Spiral Type High Efficient Heat Exchanger

FANTASTIC spiral type high efficient heat exchanger is with increased heat exchanger area to improve the heat transfer ability and evenly distribute over the surface of the copper, reducing water film, and improving efficiency.

PRODUCT DETAIL

Special Design for Anti-Freezing and Anti-Frosting on the Bottom of Air Exchanger

With 2-layer separate design, top layer is for fan and evaporator, bottom layer is for compressor and heat exchanger, and block up slopes on 2 sides of button + anti-freezing element on the top layer + the use of special liquid distribution technology. When unit is working in heating mode, the temperature of refrigerant in the air exchanger’s bottom copper tube will not decrease in order to ensure no frosting on it and smooth drainage.

Schematic System Diagram

PRODUCT DETAIL

l Manufacturing Photo

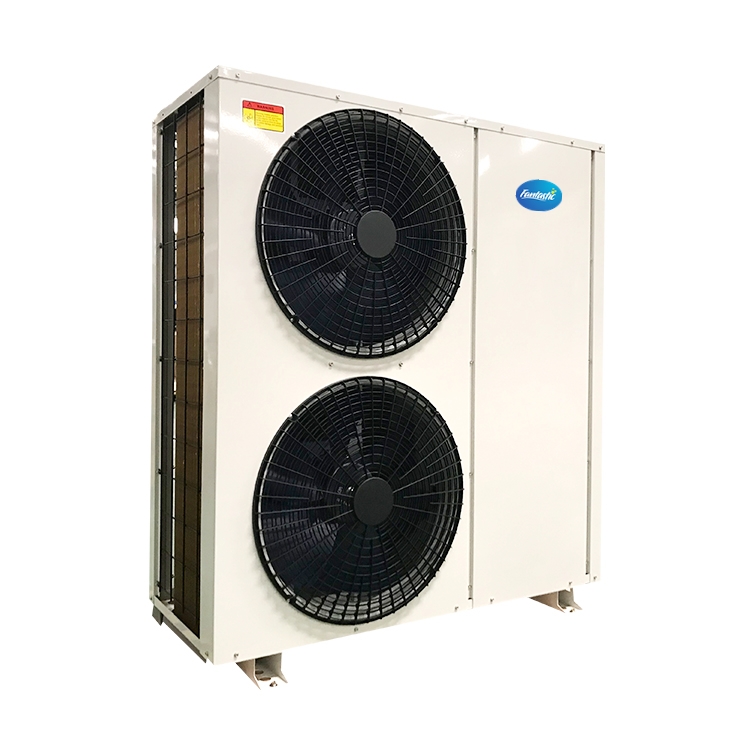

EVI Air To Water Inverter Heat Pump (Residential Models)
Model		FEHCD030S	FEHCD050S	FEHCD060S	FEHCD080S
Heating Condition: air DB 20℃/WB 15℃, water from 15℃ to 55℃
Heating capacity①	KW	10.5	17.5	21	28
Input power（Heating）①	KW	2.31	3.85	4.62	6.15
Input current（Heating）①	A	10.5	17.5	21.0	28.0
COP①	W/W	4.55	4.55	4.55	4.55
Heating condition: air DB 7℃/WB 6℃, water inlet: 40℃, water outlet: 45℃
Heating capacity②A	KW	8.3	13.8	16.5	22.0
Input power（Heating）②	KW	2.53	4.21	5.06	6.75
Input current（Heating）②	A	11.5	19.1	23.0	30.7
COP②	W/W	3.28	3.28	3.26	3.26
Heating condition: air DB -12℃/WB -14℃, water outlet: 41℃
Heating capacity③	KW	6.0	9.3	11.5	15.0
Input power（Heating）③	KW	2.60	4.04	5.10	6.52
Input current（Heating）③	A	11.8	18.4	23.2	29.6
COP③	W/W	2.30	2.30	2.25	2.30
Cooling condition: air DB 35℃/--, water inlet: 12℃, water outlet: 7℃
Cooling capacity	KW	7.5	12.3	14.7	19.6
Input power（Cooling）	KW	2.42	3.96	4.74	6.32
Input current（Cooling）	A	11.0	18.0	21.6	28.7
Power supply	V/PH/Hz	220/1/50	220/1/50	220/1/50	220/1/50
Max running current	A	14.5	27.7	28.2	46.0
Refrigerant		R32/R410a
Working ambient temperature	-30°C~43°C

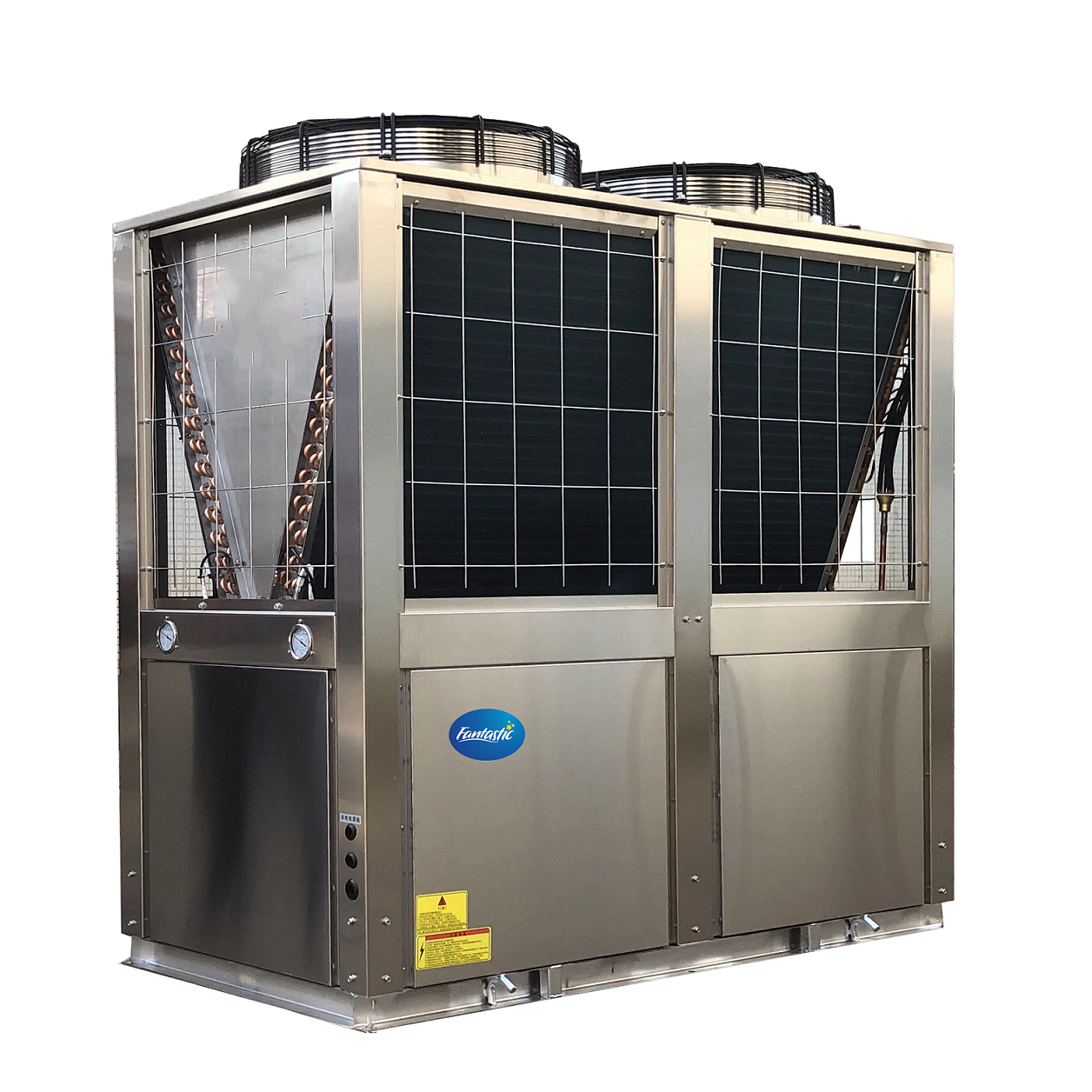

EVI Air To Water Inverter Heat Pump (Commercial Models )
Model		FEHCD080T3	FEHCD100T3	FEHCD120T3	FEHCD150T3	FEHCD200T3	FEHCD250T3	FEHCD300T3	FEHCD500T3
Heating Condition: air DB 20℃/WB 15℃, water from 15℃ to 55℃
Heating capacity①A20W15/55	KW	28	35	42.0	52.5	75.0	87.5	105	175
Input power（Heating）①	KW	6.15	7.69	9.23	11.54	16.48	19.23	23.08	38.46
Input current（Heating）①	A	9.4	11.7	14.0	17.5	25.0	29.2	35.1	58.4
COP①		4.55	4.55	4.55	4.55	4.55	4.55	4.55	4.55
Heating condition: air DB 7℃/WB 6℃, water inlet:40℃, water outlet: 45℃
Heating capacity②A7W40/45	KW	22.0	27.5	33.0	41.2	54.8	68.0	83.0	136.0
Input power（Heating）②	KW	6.75	8.44	10.28	12.87	17.12	21.18	25.86	42.36
Input current（Heating）②	A	12.8	16.0	19.5	24.4	32.5	40.2	49.1	80.5
COP②		3.26	3.26	3.21	3.20	3.20	3.21	3.21	3.21
Heating condition: air DB -12℃/WB -14℃, water outlet: 41℃
Heating capacity③A-12W41	KW	15.0	21.5	22.4	29.5	42.0	52.0	55.0	104.0
Input power（Heating）③	KW	6.52	9.27	10.00	12.83	17.01	20.35	21.90	40.69
Input current（Heating）③	A	12.4	17.6	19.0	24.4	32.3	38.6	41.6	77.3
COP③		2.30	2.32	2.24	2.30	2.47	2.56	2.51	2.56
Cooling condition: air DB 35℃/--, water inlet: 12℃, water outlet: 7℃
Cooling capacity	KW	20.0	24.5	29.4	37.0	46.0	65.0	69.0	130.0
Input power（Cooling）	KW	6.89	7.90	9.48	11.50	15.08	20.96	23.00	42.00
Input current（Cooling）	A	13.1	15.0	18.0	21.8	28.6	39.8	43.6	79.8
Refrigerant		R32/R410a
Power	V/PH/Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Max running current	A	20.0	25.7	31.3	35.2	46.8	55.0	70.7	110.0
Compressor		Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll
Working ambient temperature	-30℃～43℃
