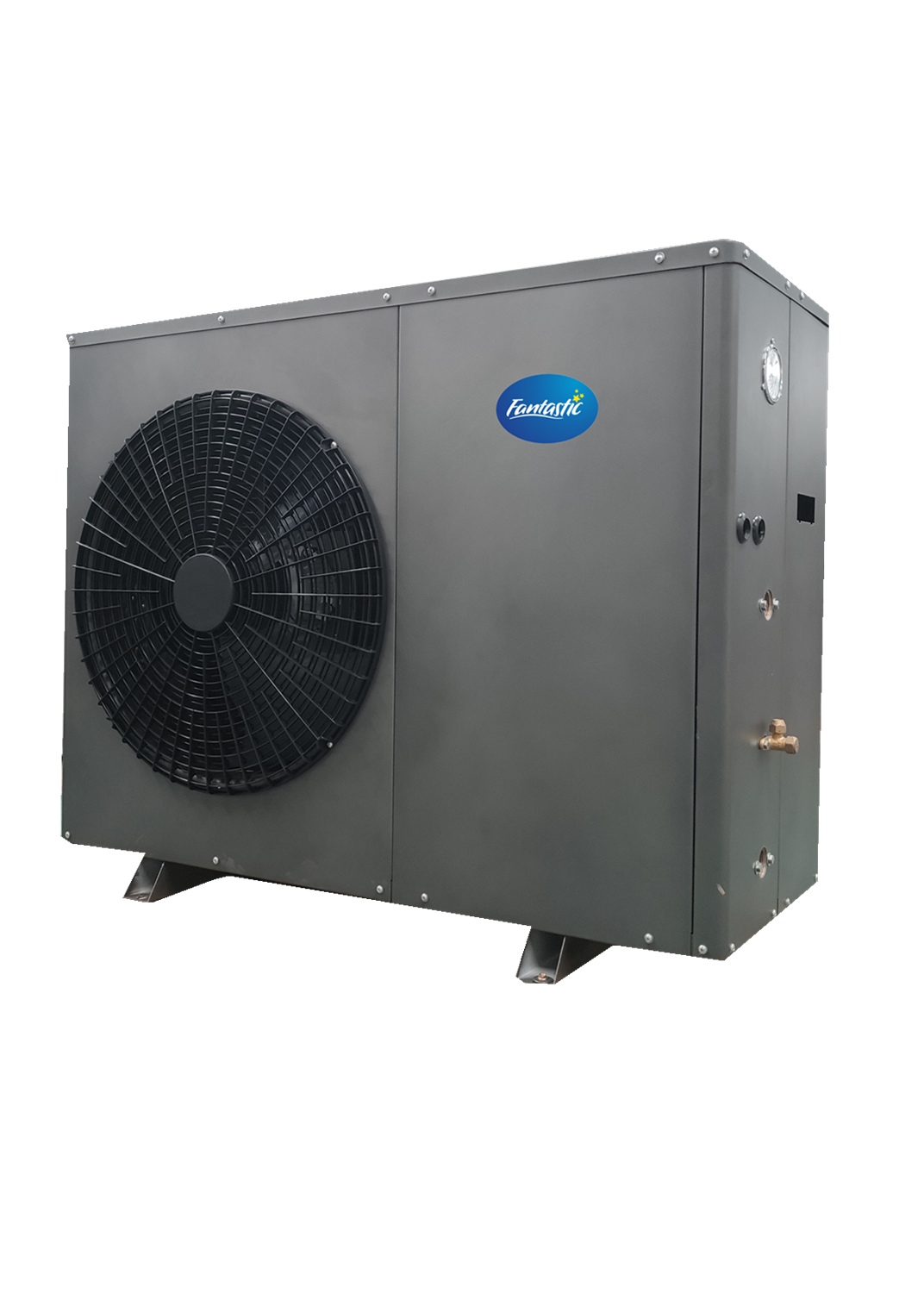

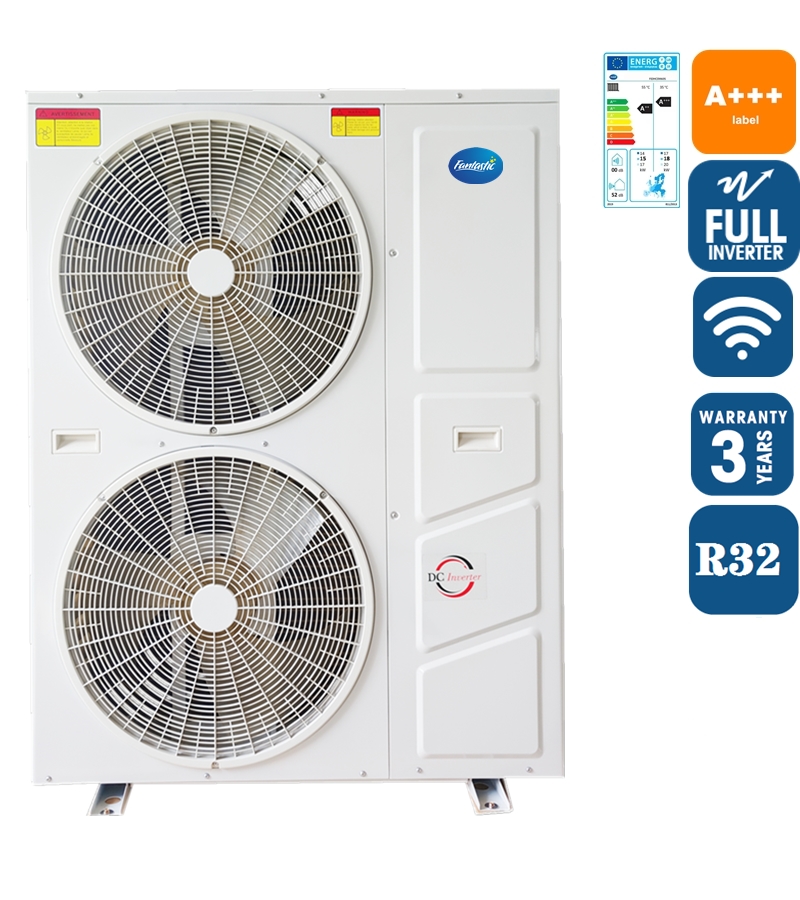

Air to Water Full Inverter Heat Pump

Main Features:

• R32 or R410a

• Function: Heating / Cooling / Domestic Hot Water

• Full Inverter – Inverter Compressor + Inverter Fan motor

• 50% speed up heating time

• Super Silent ≤43 dB (A)

• Built-in water pump and expansion valve

• Smart defrosting

• Energy-saving up to 30%

• Special design for anti-freezing and anti-frosting in the bottom of air exchanger

Applications:

Heating / cooling: House, Apartment, Vila, Hotel, Hospital, Spa, Holiday Center, residential and commercial hot water, and so on.

l Core Strengths

l High Efficiency-ERP A+++ energy by TUV

Targeting the European and North American markets , FANTASTIC has dopted R32 green gas and inverter technology, rated as A+++ energy label. With the highest energy rating in the European market, A+++, the unit is currently the most energy efficient and can significantly reduce customers' energy bills.The maximum COP is 5.65 and the SCOP is 4 88.of performance (COP). The high-efficiency DC variable frequency heat pump saves more than 30% energy than other air source heat pumps.

l Smart Control

The intelligent CAREL controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application end. With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.

l 4-Core Full Inverter Design

FANTASTIC DC inverter heat pump is applying real full-inverter technology, not only DC inverter compressor, but also inverter water pump and inverter fan motor. What's more, the expansion tank and water flow switch are also built inside the heat pump.

PRODUCT DETAIL

l 50% Speed up Heating / Cooling Time Than Traditional Heat Pump

Once the heat pump is on, FANTASTIC Inverter unit can quickly pick and choose the best compressor and fan motor operating frequencies and the heat pump EEV opening automatically according to the heating or cooling demand by smart inverter control technology for the first time heating, inverter fast heating can save 50% heating time than traditional heat pump.

PRODUCT DETAIL

l Super Silent Operation

FANTASTIC DC Inverter swimming pool heat pump adopts step-less inverter compressor, step-less inverter control system and brushless fan motor. By smart conversion of compressor speed, fan motor speed and system pressure, it can not only provide amazing energy saving effect, but also silence as low as a fridge, 12dB (A) lower than traditional On / Off heat pump.

PRODUCT DETAIL

l Carel Control for option

Using famous high quality Carel controller for option,it's high effcient and convient for customer and also with curve control (would change the water temeprature as the ambient temperature auotmacally) and also with timing sterilization function and API function, and so on.

l Hydraulic Module

After customer buy the heat pump , they also need complicate and high cost's installation,FANTASTIC hydraulic module which could put all intallation thing - water pump ,expansion valve, 3-way valve ,wiring box ,sensors，electric heater ,and so on in one box,customer buy the heat pump and our hydraulic module togetter ,then they just need to connect the water pipe would be ok.

l Manufacturing Photo

Inverter Air to Water heat pump(residential models)
Model		FIHC020	FIHCD030	FIHCD050	FIHCD060	FIHCD080
Heating condition: air DB 7℃/WB 6℃, water inlet: 40℃, water outlet: 45℃
Heating capacity①A	KW	5.4	10.5	14.0	16.5	24.0
Input power（Heating）①	KW	1.64	3.25	4.18	5.00	7.27
Input current（Heating）①	A	7.5	14.8	19.0	22.7	33.0
COP①	W/W	3.29	3.23	3.35	3.30	3.30
Heating condition: air DB -12℃/WB -14℃, water outlet: 41℃
Heating capacity②	KW	3.8	6.5	9.5	11.5	18.0
Input power（Heating）②	KW	1.80	3.08	4.46	5.45	8.40
Input current（Heating）②	A	8.2	14.0	20.3	24.8	38.2
COP②	W/W	2.11	2.11	2.13	2.11	2.14
Cooling condition: air DB 35℃/--, water inlet: 12℃, water outlet:7℃
Cooling capacity	KW	5.0	8.0	12.5	15.0	20.0
Input power	KW	1.99	3.00	4.98	5.98	7.90
Input current	A	9.1	13.6	22.6	27.2	35.9
Power supply	V/PH/Hz	220/1/50	220/1/50	220/1/50	220/1/50	220/1/50
Max running current	A	13.6	20.5	34.0	40.7	53.9
Refrigerant		R32/R410a

Inverter Air to Water heat pump (commercial models)
Model		FIHCD0303	FIHCD0503	FIHCD0603	FIHCD0803	FIHCD1003	FIHCD1203
Heating conditon: air DB 7℃/WB 6℃, water inlet: 40℃, water outlet: 45℃
Heating capacity①A	KW	10.5	14.0	16.5	24.0	27.0	32.4
Input power（Heating）①	KW	3.20	4.24	5.00	7.27	8.18	9.84
Input current（Heating）①	A	5.9	7.9	9.3	13.5	15.2	18.2
COP①	W/W	3.28	3.30	3.30	3.30	3.30	3.29
Heating conditon: air DB -12℃/WB -14℃, water outlet: 41℃
Heating capacity②	KW	6.5	9.5	11.5	18.0	20.0	24.0
Input power（Heating）②	KW	3.08	4.46	5.45	8.40	9.40	11.40
Input current（Heating）②	A	5.7	8.3	10.1	15.6	17.4	21.1
COP②	W/W	2.11	2.13	2.11	2.14	2.13	2.11
Cooling conditon: air DB 35℃/--, water inlet: 12℃, water outlet: 7℃
Cooling capacity	KW	8.0	12.5	15.0	20.0	25.0	30.0
Input power	KW	3.00	4.70	5.80	7.90	9.96	11.90
Input current	A	5.6	8.7	10.7	14.6	18.5	22.0
Power supply	V/PH/Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Max running current	A	7.2	11.3	14.0	19.0	24.0	28.7
Noise	dB(A)	53	54	54	55	56	56
Water inlet/outlet	inch	1"	1"	1"	1-1/4"	1-1/4"	1-1/4"
Water flow volume	m³/h	1.38	2.15	2.58	3.44	4.30	5.16
Refrigerant		R32/R410A
