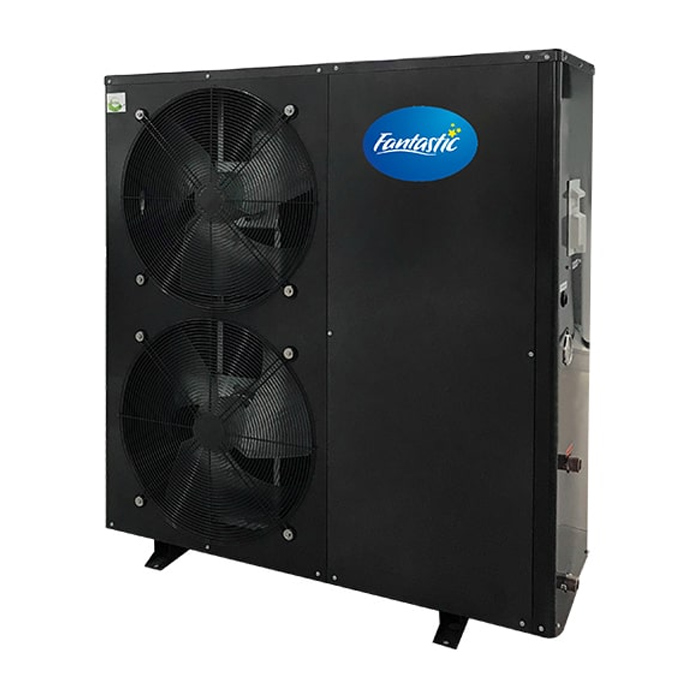

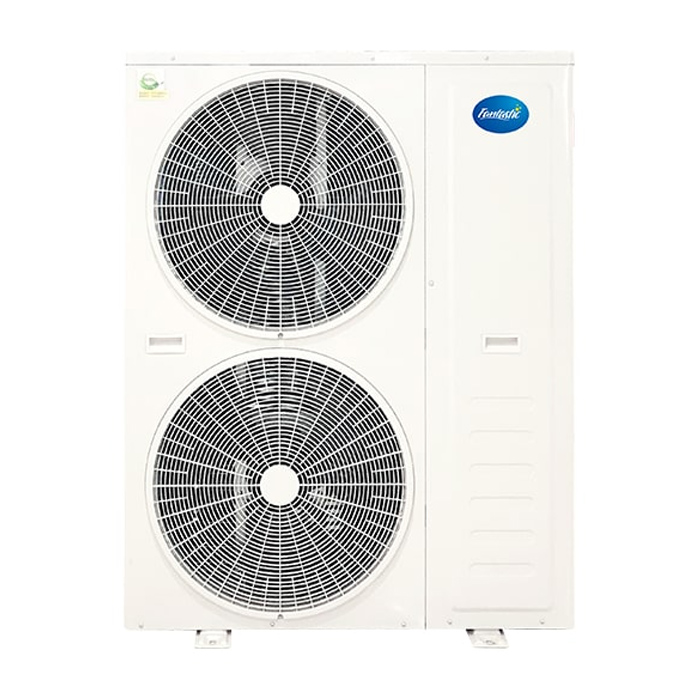

Air to Water Full Inverter Heat Pump
Main Features:
• R32 or R410a
• Function: Heating / Cooling / Domestic Hot Water
• Full Inverter – Inverter Compressor + Inverter Fan motor
• 50% speed up heating time
• Super Silent ≤43 dB (A)
• Built-in water pump and expansion valve
• Smart defrosting
• Energy-saving up to 30%
• Special design for anti-freezing and anti-frosting in the bottom of air exchanger
Applications:
Heating / cooling: House, Apartment, Vila, Hotel, Hospital, Spa, Holiday Center, residential and commercial hot water, and so on.
Core Strengths
4-Core Full Inverter Design
FANTASTIC DC inverter heat pump is applying real full-inverter technology, not only DC inverter compressor, but also inverter water pump and inverter fan motor. What’s more, the expansion tank and water flow switch are also built inside the heat pump.
50% Speed up Heating / Cooling Time than Traditional Heat Pump
Once the heat pump is on, FANTASTIC Inverter unit can quickly pick and choose the best compressor and fan motor operating frequencies and the heat pump EEV opening automatically according to the heating or cooling demand by smart inverter control technology for the first time heating, inverter fast heating can save 50% heating time than traditional heat pump.
Super Silent Operation
FANTASTIC DC Inverter swimming pool heat pump adopts step-less inverter compressor, step-less inverter control system and brushless fan motor. By smart conversion of compressor speed, fan motor speed and system pressure, it can not only provide amazing energy saving effect, but also silence as low as a fridge, 12dB (A) lower than traditional On / Off heat pump.
Quick Enter to Stable Status
The heat pump utilizes smart defrosting by the control of frequency and EEV technology which allows the unit to enter the best defrosting status quickly, reduce the defrosting times and extend the effective heating time, fast recovery of water-supply temperature, and thus improve heat pump heating efficiency and keep comfortable temperature.
High COP and 30% more Energy-Saving than Traditional Heat Pump
With the inverter compressor and DC fan motor and the PFC control method, the heat pump can regulate the operation capacity automatically. With no frequent start-up and stop running, the heat pump can work in stable conditions with high efficiency. The energy consumption is 30% lower than that of the traditional heat pump.
Special Design for Anti-Freezing and Anti-Frosting on the Bottom of Heat Exchanger
With block up slopes on 2 sides of button + anti-freezing element on the bottom of heat pump and the use of special liquid distribution technology, when unit works in heating mode, the temperature of refrigerant in the heat exchanger’s bottom copper tubes will not decrease in order to ensure no frosting on it and smooth drainage.
Schematic System Diagram
l Manufacturing Photo
| Inverter Air to Water Heat Pump | ||||||
| Model | FIHC020 | FIHCD030 | FIHCD050 | FIHCD060 | FIHCD080 | |
| Heating condition: air DB 7℃/WB 6℃, water inlet:40℃, water outlet: 45℃ | ||||||
| Heating capacity ①A | KW | 5.4 | 10.5 | 14.0 | 16.5 | 24.0 |
| Input power（Heating）① | KW | 1.64 | 3.25 | 4.18 | 5.00 | 7.27 |
| Input current（Heating）① | A | 7.5 | 14.8 | 19.0 | 22.7 | 33.0 |
| COP① | W/W | 3.29 | 3.23 | 3.35 | 3.30 | 3.30 |
| Heating condition: air DB -12℃/WB -14℃, water outlet: 41℃ | ||||||
| Heating capacity② | KW | 3.8 | 6.5 | 9.5 | 11.5 | 18.0 |
| Input power（Heating）② | KW | 1.80 | 3.08 | 4.46 | 5.45 | 8.40 |
| Input current（Heating）② | A | 8.2 | 14.0 | 20.3 | 24.8 | 38.2 |
| COP② | W/W | 2.11 | 2.11 | 2.13 | 2.11 | 2.14 |
| Cooling condition: air DB 35℃/--, water inlet:12℃, water outlet:7℃ | ||||||
| Cooling capacity | KW | 5.0 | 8.0 | 12.5 | 15.0 | 20.0 |
| Input power | KW | 1.99 | 3.00 | 4.98 | 5.98 | 7.90 |
| Input current | A | 9.1 | 13.6 | 22.6 | 27.2 | 35.9 |
| Power supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 |
| Max running current | A | 13.6 | 20.5 | 34.0 | 40.7 | 53.9 |
| Refrigerant | R32/R410a | |||||
| Inverter Air to Water Heat Pump | |||||||
| Model | FIHCD0303 | FIHCD0503 | FIHCD0603 | FIHCD0803 | FIHCD1003 | FIHCD1203 | |
| Heating conditon: air DB 7℃/WB 6℃, water inlet:40℃, water outlet: 45℃ | |||||||
| Heating capacity①A | KW | 10.5 | 14.0 | 16.5 | 24.0 | 27.0 | 32.4 |
| Input power（Heating）① | KW | 3.20 | 4.24 | 5.00 | 7.27 | 8.18 | 9.84 |
| Input current（Heating）① | A | 5.9 | 7.9 | 9.3 | 13.5 | 15.2 | 18.2 |
| COP① | W/W | 3.28 | 3.30 | 3.30 | 3.30 | 3.30 | 3.29 |
| Heating conditon: air DB -12℃/WB -14℃, water outlet: 41℃ | |||||||
| Heating capacity② | KW | 6.5 | 9.5 | 11.5 | 18.0 | 20.0 | 24.0 |
| Input power（Heating）② | KW | 3.08 | 4.46 | 5.45 | 8.40 | 9.40 | 11.40 |
| Input current（Heating）② | A | 5.7 | 8.3 | 10.1 | 15.6 | 17.4 | 21.1 |
| COP② | W/W | 2.11 | 2.13 | 2.11 | 2.14 | 2.13 | 2.11 |
| Cooling conditon: air DB 35℃/--, water inlet:12℃, water outlet: 7℃ | |||||||
| Cooling capacity | KW | 8.0 | 12.5 | 15.0 | 20.0 | 25.0 | 30.0 |
| Input power | KW | 3.00 | 4.70 | 5.80 | 7.90 | 9.96 | 11.90 |
| Input current | A | 5.6 | 8.7 | 10.7 | 14.6 | 18.5 | 22.0 |
| Power supply | V/PH/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Max running current | A | 7.2 | 11.3 | 14.0 | 19.0 | 24.0 | 28.7 |
| Noise | dB(A) | 53 | 54 | 54 | 55 | 56 | 56 |
| Water inlet/outlet | inch | 1" | 1" | 1" | 1-1/4" | 1-1/4" | 1-1/4" |
| Water flow volume | m³/h | 1.38 | 2.15 | 2.58 | 3.44 | 4.30 | 5.16 |
| Refrigerant | R32/R410A | ||||||
