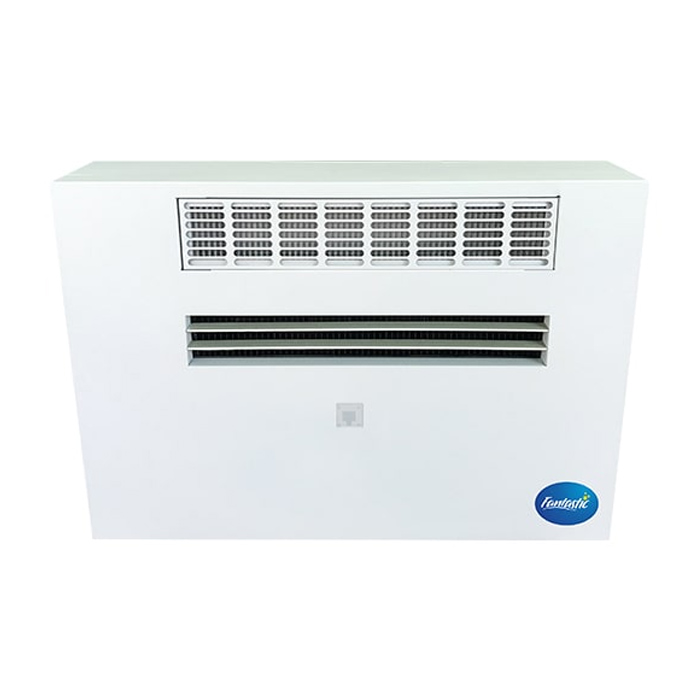

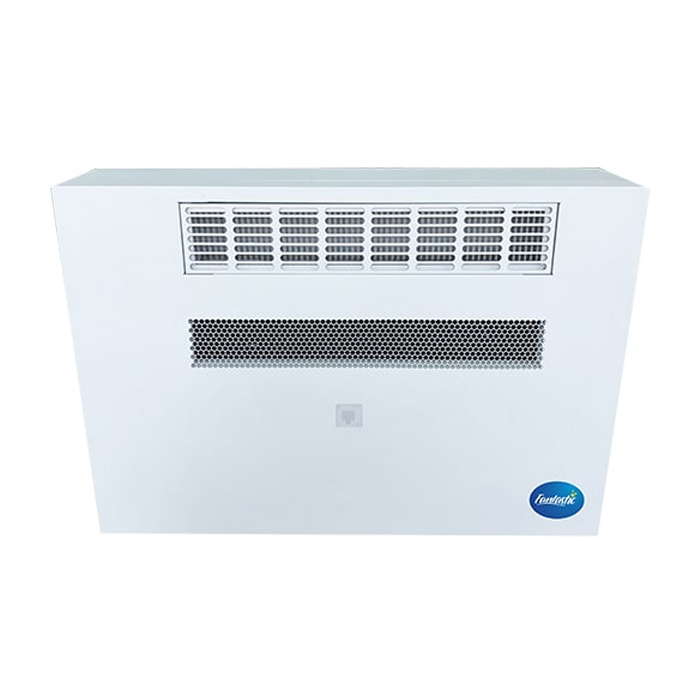

Monoblock Air Conditioner With Radiator Heating

Main Features:

• 1.5 kW and 2.6 kW For Cooling

• Could Hidden install into the wall

• Indoor cooling by AC & heating by hot water

• Combine air conditioner and radiator in one

• With Ventilation function

• Low level of noise

• All mono-block without outdoor unit

Core Strengths

Why choose Fantastic all in one monoblock air conditioner?

(with AC cooling + radiator heating + Ventilation)

1. Unique Design - FANTASTIC patent products for some market where gas or other heat source is cheap for winter heating and also need cooling in summer, like Russia, Canada, and the USA, and so on.

2. ALL IN ONE - Monoblock air conditioner is equipment as an air conditioner system for cooling + traditional radiator system for heating + ventilation system for fresh air.

3. Save space and looks nice - FANTASTIC mono-block air conditioner could be installed inside the wall, and hidden pipe connections and installation under the window, and what's more, No external unit needs to be installed outdoor, save much space.

4. Super Quiet - FANTASTIC air conditioner with thin, light, long-finned blade to provide a good swimming environment and friendly neighborhood.

PRODUCT DETAIL

All Hidden Into the Wall

The FANTASTIC mono-block air conditioner could be install inside the wall to save space.

PRODUCT DETAIL

No External Outdoor Unit on the Facade

The FANTASTIC mono-block air conditioner is complete mono-block, no external outdoor unit outside, and hidden pipe connections and installation under the window, keep the outdoor wall nice.

PRODUCT DETAIL

Combine Two Products in One

FANTASTIC monoblock air conditioner is an equipment as an air conditioner system for cooling and heating by hot water coil as a radiator to separated  80 / 60°C water heating circuit in the system, Customer can get cooling by air conditioner in summer and heating by radiator in Winter by one same unit.

PRODUCT DETAIL

Ventilation

FANTASTIC mono block air conditioner could supply fresh air of 30-40m³ per hour.

PRODUCT DETAIL

Super Low Noise When Cooling, No Noise When Heating

FANTASTIC monoblock air conditioner is using low sound centrifuge fan motor for cooling, and using just natural heating convection without internal fan for heating as radiator.

PRODUCT DETAIL

Super Energy-saving, Low Electrical Cost

FANTASTIC monoblock air conditioner's with high EER for cooling, and it’s without internal fan for heating, no noise and no any electrical cost increase.

PRODUCT DETAIL

Model   FAAHC015 FAAHC010
Cooling Capacity W 2632 1530
BTU/h 9000 5000
Input Power W 940 546
Input Current A 4.28 2.49
Air Flow m3/h 400 400
Hot water  Capacity W 2700 2700
Hot Water Inlet/Outlet 80/60 80/60
Hot Water flowrate L/h 230 230
Hot Water Pressure Drop kpa 9.4 9.4
Noise dB(A) 48 46
Power Supply V/PH/Hz 220/1/50 220/1/50
Refrigerant Type   R410a R410a
Unit Net Dimensions ( L/M/H ) mm 920/230/640 920/230/640
Unit Shipping Dimensions ( L/M/H ) mm 1080/370/720 1080/370/720
Net Weight kg 45 43
Shipping Weight kg 50 48

360° Product Overview
