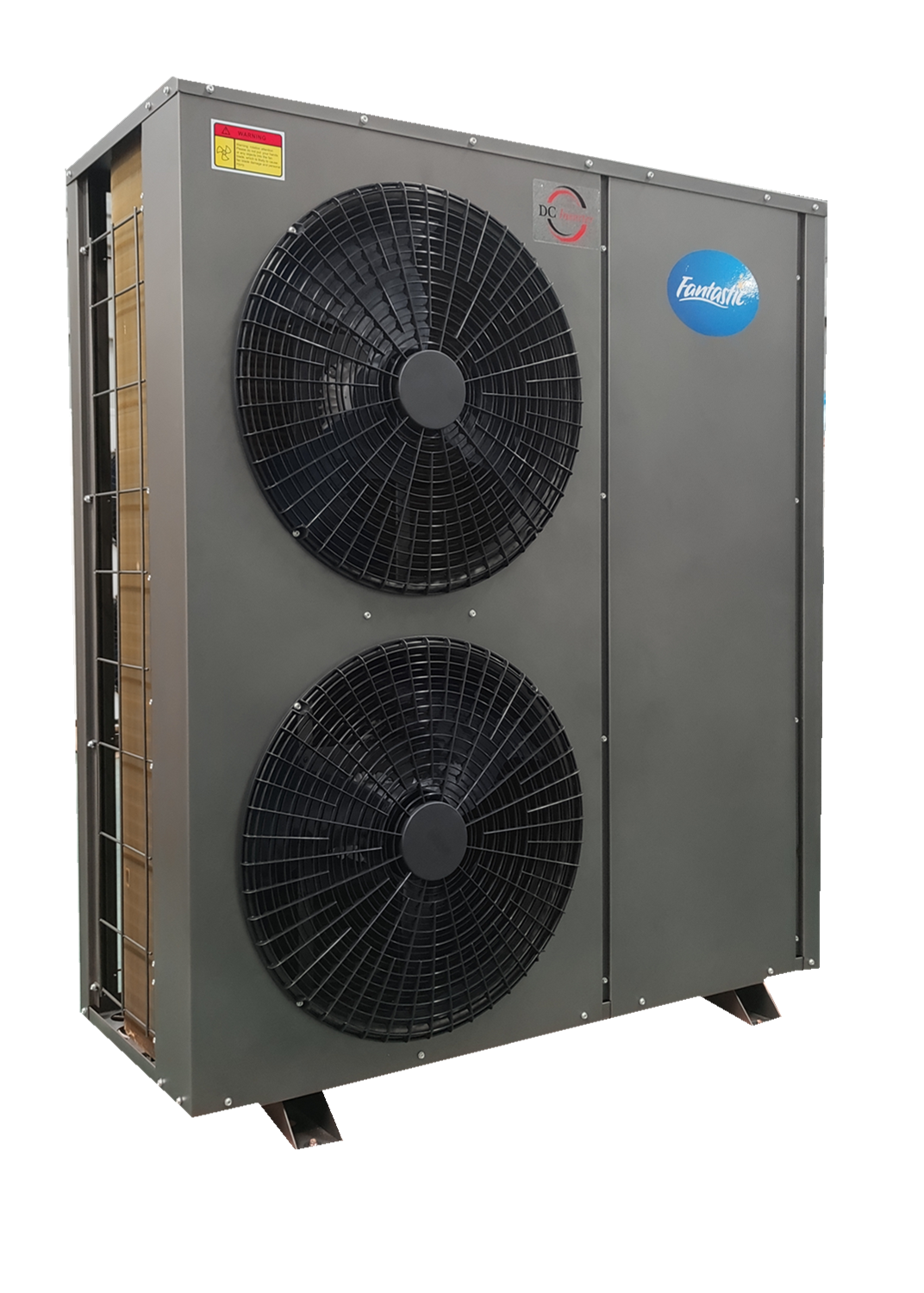

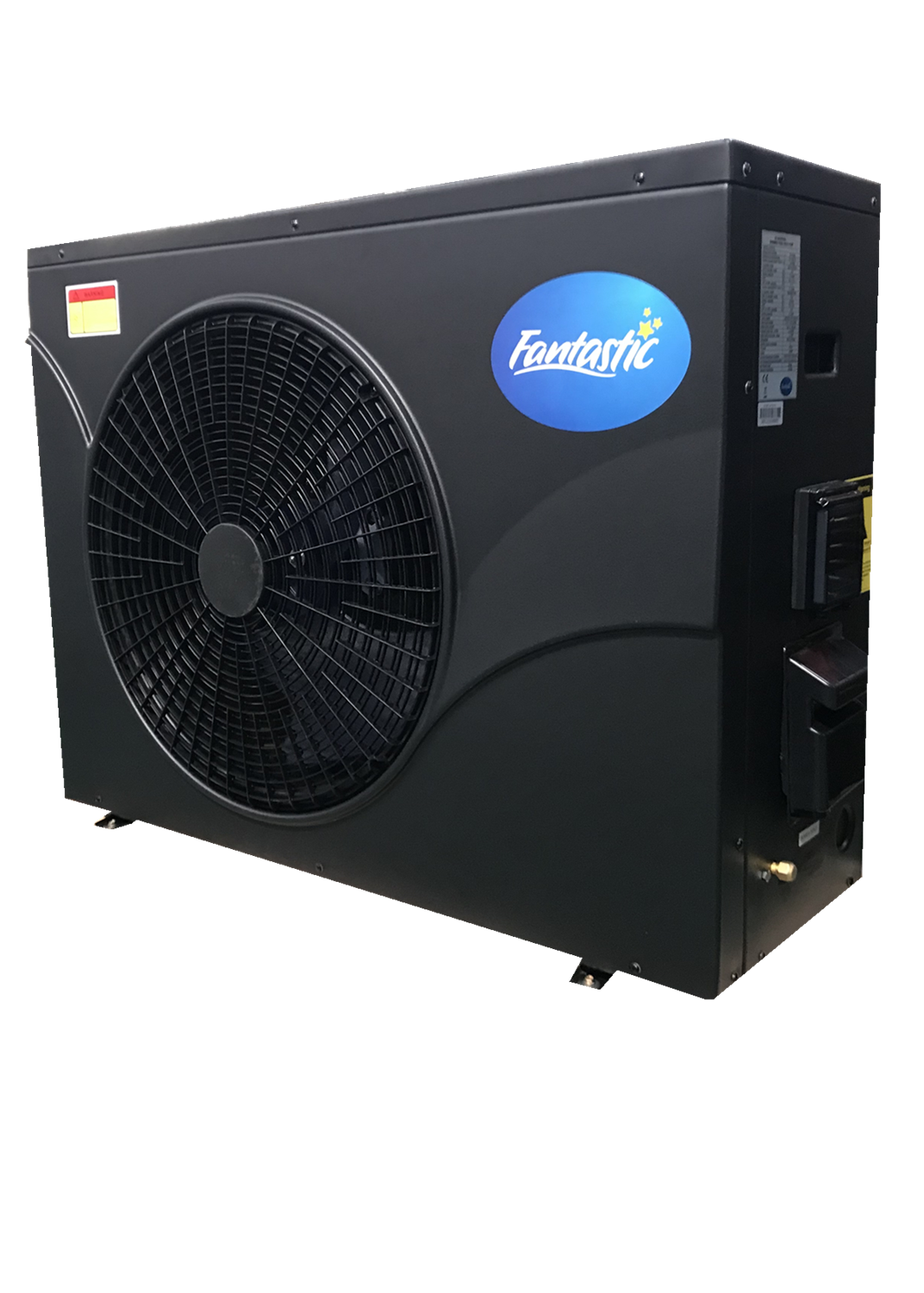

R32 / R410a On / Off Pool Heat Pump

Main Features:

• R32 or R410a

• Wide heating capacity range: 4.3 kw to 215 Kw

• High COP up to 5.7

• Auto pool heating / cooling switch

• Centralized control

• Spiral titanium heat exchanger

• Antirust ABS casing

• Wi-Fi Smartphone APP control remotely (Optional)

• EEV technology

• Automatic defrost by cycle reversal

• Soft starter

Applications:

• Pool size range in 15m³~160m³

• Indoor and outdoor pools

Core Strengths

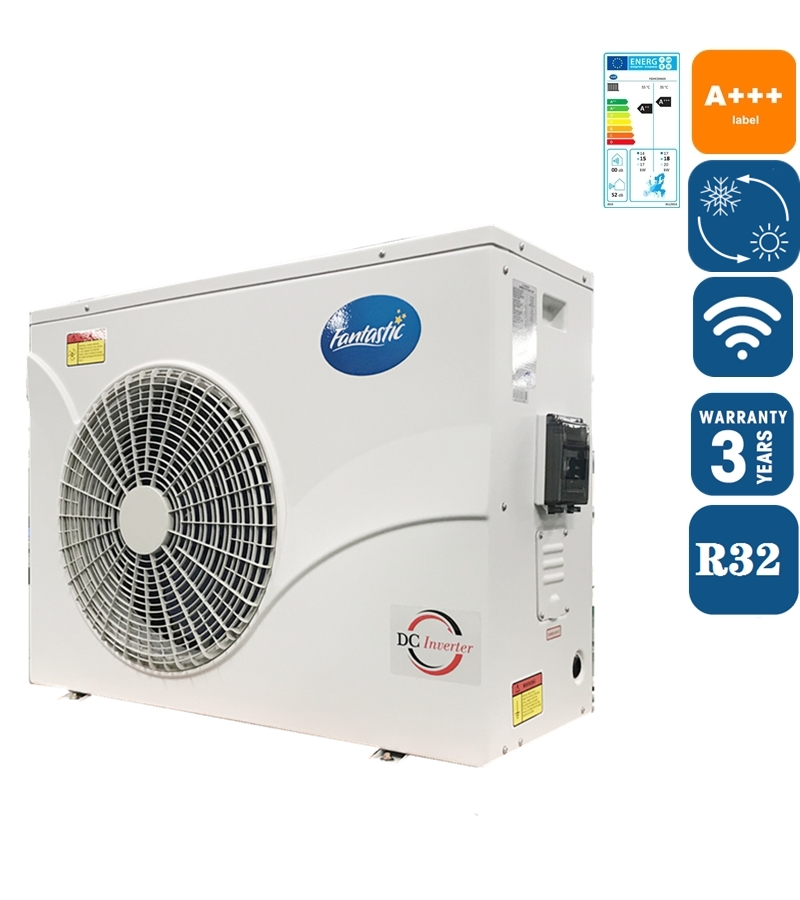

R32 Refrigerant for Option

PRODUCT DETAIL

High COP

With COP of 5.7 at working condition of 24℃ / 19℃ (DB / WB), FANTASTIC swimming pool heat pump has high efficiency for both pool cooling and heating.

PRODUCT DETAIL

Wi-Fi Smartphone APP Control Remotely for Option

FANTASTIC swimming pool heat pump has the Wi-Fi remote control, which means you can control and know the working situation of your swimming pool heat pump on your Smartphone at anytime and anywhere, even if you are away from home.

Auto Pool Heating / Cooling Switch

FANTASTIC swimming pool heat pump has auto mode to keep the pool water temperature. For example, if the pool target water temperature is set to 28℃, when the actual pool water temperature is lower than 28℃, heat pump will start heating automatically; when the actual pool water temperature is high than 28℃, it will start cooling automatically.

PRODUCT DETAIL

Spiral Titanium Heat Exchanger

FANTASTIC patented titanium heat exhcanger is with spiral tubes insie, the titanium coil with higher heat efficiency and anti-corrosion, which makes the unit longer working life. Besides, FANTASTIC has patented shell certified ETL for North America.

PRODUCT DETAIL

Electronic Expansion Valve

Wider working temperature range, faster and more accurate refrigerant flow control than capillary and mechanical expansion valve. Best choice to achieve higher efficiency and energy-saving.

PRODUCT DETAIL

Air To Water Swimming pool Heat Pump
Mode		FPHC010S	FPHC015S	FPHC018S	FPHC020S	FPHC025S	FPHC030S
Heating Conditoin: Ambient 27℃, Water: 26℃
Heating Capacity	kW	5.0	7.5	9.0	10.0	12.5	15.0
Heating Capacity	BTU/h	17100	25600	30800	34200	46100	51200
COP	W/W	5.87	5.87	5.87	5.87	5.87	5.87
Input Power	kW	0.85	1.28	1.53	1.70	2.30	2.56
Input Current	A	3.9	5.8	7.0	7.7	10.5	11.6
Heating Conditoin: Ambient 24℃, Water: 26℃
Heating Capacity	kW	4.3	6.5	7.7	8.6	10.8	12.9
Heating Capacity	BTU/h	14700	22100	26500	29400	36700	44100
COP	W/W	5.3	5.3	5.3	5.3	5.3	5.3
Input Power	kW	0.81	1.22	1.46	1.62	2.03	2.43
Input Current	A	3.7	5.5	6.6	7.4	9.2	11.1
Heating Conditoin: Ambient 15℃, Water: 26℃
Heating Capacity	kW	3.8	5.7	6.8	7.6	9.5	11.4
Heating Capacity	BTU/h	13000	19500	23400	26000	32500	38900
COP	W/W	4.7	4.7	4.7	4.7	4.7	4.7
Input Power	kW	0.81	1.21	1.46	1.62	2.02	2.43
Input Current	A	3.7	5.5	6.6	7.4	9.2	11.0
Power Supply	V/PH/Hz	220/1/50	220/1/50	220/1/50	220/1/50	220/1/50	220/1/50
Water Out let/Water In let	inch	1–1/2"	1–1/2"	1–1/2"	1–1/2"	1–1/2"	1–1/2"
Water Flow Volume (Range)	m3/h	1.23~2.46	1.85~3.70	2.22~4.44	2.46~4.93	3.08~6.16	3.70~7.39
Fan Direction		horizontal/Vertical	horizontal/Vertical	horizontal/Vertical	horizontal/Vertical	horizontal/Vertical	horizontal/Vertical
Refrigerant Type		R32/R410A

Model		FPHC035S	FPHC040S	FPHC045S	FPHC050S3	FPHC060S3	FPHC070S3
Heating Conditon: Ambient 27℃, Water: 26℃
Heating Capacity	kW	17.5	20.0	22.5	25.0	30.0	35.0
Heating Capacity	BTU/h	59800	68300	76800	85300	102400	119500
COP	W/W	5.87	5.87	5.87	5.87	5.87	5.87
Input Power	kW	2.98	3.41	3.83	2.55	2.78	2.97
Input Current	A	13.6	15.5	17.4	4.8	5.3	5.6
Heating Conditon: Ambient 24℃, Water: 26℃
Heating Capacity	kW	15.1	17.2	19.4	21.5	25.8	30.1
Heating Capacity	BTU/h	51400	58700	66100	73400	88100	102800
COP	W/W	5.3	5.3	5.3	5.3	5.3	5.3
Input Power	kW	2.84	3.25	3.65	4.06	4.87	5.68
Input Current	A	12.9	14.8	16.6	7.7	9.2	10.8
Heating Conditon: Ambient 15℃, Water: 26℃
Heating Capacity	kW	13.3	15.2	17.1	19.0	22.8	26.6
Heating Capacity	BTU/h	45400	51900	58400	64900	77800	90800
COP	W/W	4.7	4.7	4.7	4.7	4.7	4.7
Input Power	kW	2.83	3.23	3.64	4.04	4.85	5.66
Input Current	A	12.9	14.7	16.5	7.7	9.2	10.7
Power Supply	V/PH/Hz	220/1/50	220/1/50	220/1/50	380/3/50	380/3/50	380/3/50
Water Out let/Water In let	inch	1–1/2"	1–1/2"	1–1/2"	1–1/2"	1–1/2"	1–1/2"
Water Flow Volume(range)	m3/h	4.31~8.63	4.93~9.86	5.55~11.09	6.16~12.32	7.39~14.79	8.63~17.25
Fan Direction		horizontal/Vertical	horizontal/Vertical	horizontal/Vertical	horizontal/Vertical	horizontal/Vertical	horizontal/Vertical
Refrigerant Type		R32/R410A
