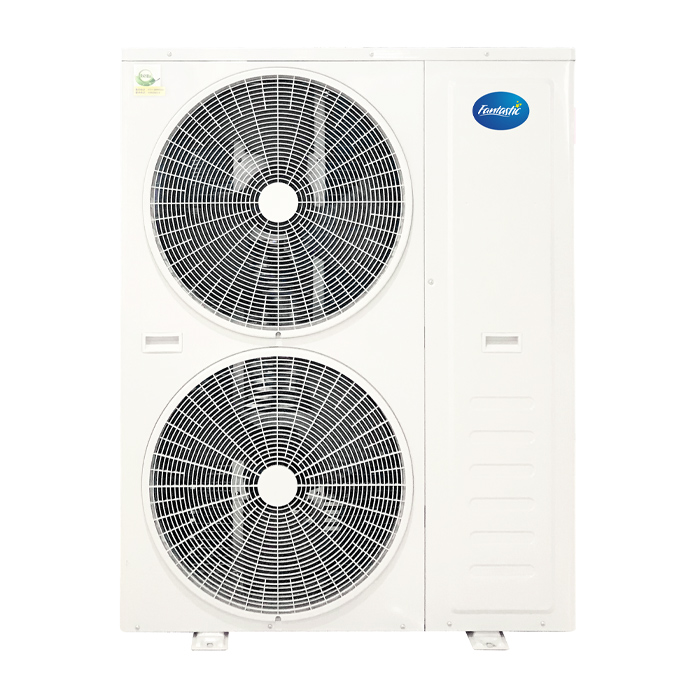

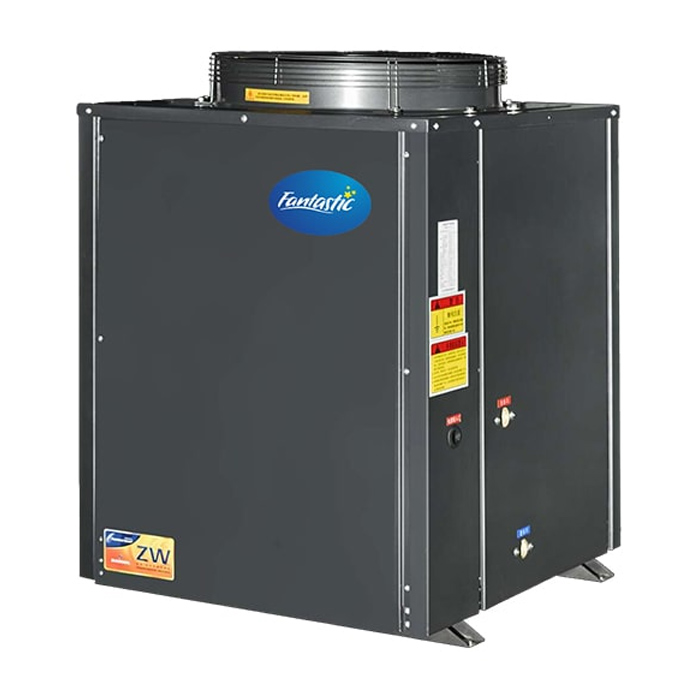

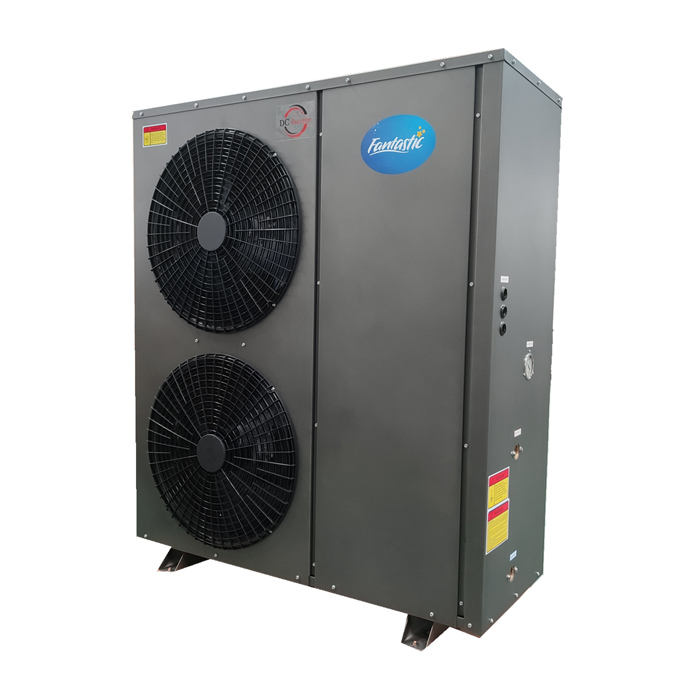

Residential Heat Pump Water Heater / Chiller

Main Features:

• R32 or R410a

• Monoblock or split type for option

• Function: Heating / Cold Water / Cooling / Domestic Hot Water

• Copland Compressor

• Electric expansion valve

• High Efficient FANTASTIC customize heat exchanger

• Special design for anti-freezing and anti-frosting in the bottom of air exchanger

Applications:

Residential and commercial hot water, heating / cooling: House, Apartment, Vila, Hotel, Hospital, Spa, Holiday Center, and so on.

Core Strengths

18 years experience - FANTASTIC company has manufactured over 58,000 Air to water heat pumps worldwide.

Affordability - Save energy & high performance  - As the high COP of FANTASTIC air source heat pump water heater or water chiller, it can heat the water for about 30% of the cost of heating with gas and  75% of electric water heater, High COP means more energy saving.

Ex. $ 1 input - $ 4.1 of energy output at COP of 4.1

Long life with famous brand high-quality components - CAREL controller and CAREL expansion valve for option, Copland or Panasonic compressor, SWEP plate heat exchanger, and WILO water pump, and so on. All the heat pumps equipped with famous international brand components, and we also can manufacture the casing with stainless steel, and much experience on titanium heat exchanger heat pump for someplace where water quality is pool or water requirement is special.

Certificate - FANTASTIC heat water heater certified with CE, ROHS for Europe and SAA, C-tick for the Australian market.

PRODUCT DETAIL

Wide Heating Capacity Range

The heating capacity of FANTASTIC water to water heat pump is up to 500kW and larger. Suitable for different size of project demands, no matter for household or commercial using.

PRODUCT DETAIL

High COP

FANTASTCI heat pump water heater has high energy saving performance, which make COP as high as 4.58.

PRODUCT DETAIL

High Efficient & Energy-saving

FANTASTIC advanced heat pump technology can realize low operation cost. Electricity cost is only 75% of electric water heater.

PRODUCT DETAIL

Intelligent Curve Economic Control Mode

Intelligent working mode with winter heating curve control. According to the changes of outdoor ambient temperature, the heat pump will calculate and supply the most suitable water temperature automatically to save more energy and provide more comfortable and suitable heating / cooling.

PRODUCT DETAIL

FANTASTIC Spiral Type High Efficient Heat Exchanger

FANTASTIC spiral type high efficient heat exchanger is with increased heat exchanger area to improve the heat transfer ability and evenly distribute over the surface of the copper, reducing water film, and improving efficiency.

PRODUCT DETAIL

Super-heat Management

FANTASTIC EVI heat pump increases the heating capacity and extends the operating life by TEV, and increases COP and limits the discharge temperature under safe level by EEV, and lower the defrosting time to make heat pump put more time on heating and more energy-saving.

PRODUCT DETAIL

l   Manufacturing Photo

Model 1   FCD010S FCD015S FCD020S FCD030S FCD035S FCD040S FCD050S3 FCD060S3
Rated Output Water L/h 75 115 150 225 263 300 375 450
Heating Condition: air DB 20℃/WB 15℃, water from 15℃to 55℃
Heating Capacity kW 3.5 5.3 7.0 10.5 12.3 14.0 17.5 21.0
BTU/h 12000 18100 23900 35900 41800 47800 59800 71700
COP W/W 4.58 4.58 4.58 4.58 4.58 4.58 4.58 4.58
Input Power kW 0.76 1.16 1.53 2.29 2.67 3.06 3.82 4.59
Input Current A 3.5 5.3 6.9 10.4 12.2 13.9 7.1 8.5
Cooling condition: air DB 35℃/--, water inlet: 12℃, water outlet: 7℃
 Rated Cooling Capacity KW 2.5 3.5 5 6.3 7.5 7.5 8.75 10
BTU/H 8530 11942 17060 21500 25600 25600 29855 34200
 Rated Input Power KW 0.88 1.23 1.75 2.21 2.63 2.63 3.07 3.51
 Rated Input Curren A 4.0 5.6 8.0 10.0 12.0 12.0 4.7 5.3
 Rated Temp.Of Water Output 55.0
 Power Supply V/PH/Hz 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 380/3/50 380/3/50
 Noise dB(A) 48 48 48 52 54 54 54 55
 Compressor   Rotary Rotary Rotary Scroll Scroll Scroll Scroll Scroll
 Fan Direction   horizontal horizontal horizontal horizontal horizontal horizontal horizontal horizontal
 Refrigerant Type   R32/R410A
 Water Flow Volume m3/h 1 1.5 2 2 2.5 2.5 3 3.5
 Water Out let/Water In let inch 3/4" 3/4" 3/4" 1" 1" 1" 1" 1"
