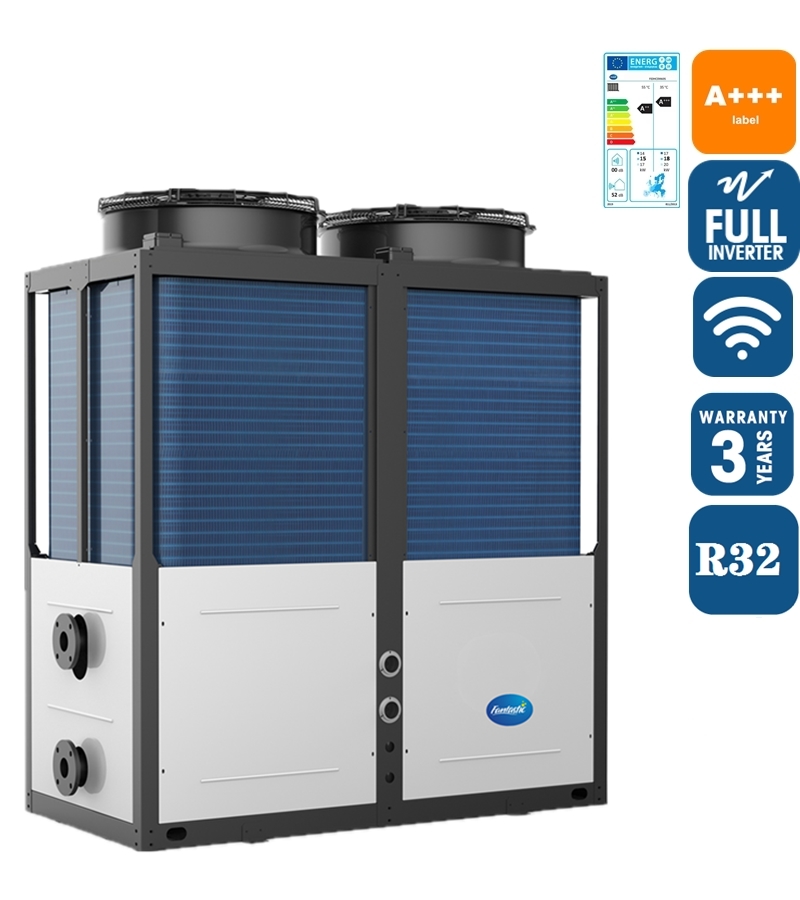

T1 Commercial Pool Heat Pump

Main Features:

• Wide heating capacity up to 215 kw or bigger

• Control working compressor quantity for more energy saving

• Centralized Control for multi heat pumps work together

• Centralized Control

• EEV technology

• Super low noise working

• Golden fin heat exchanger

• Golden fin heat exchanger for option

• Auto Pool Heating / Cooling switch

• High COP

• Milt-Protection

• APP control for optional

Core Strengths

PRODUCT DETAIL

Wide Heating Capacity Range

The heating capacity of FANTASTIC swimming pool heat pump is up to 500 Kw or larger, suitable for different pool size demands, no matter for household or commercial projects.

PRODUCT DETAIL

Lower Running Cost Than Traditional Pool Heat Pump for Option

FANTASTIC swimming pool heat pump has precise energy stage settings that ensure the working unit to achieve the desired energy saving efficiency. Heat pump will change compressor using quantity according to the real heat required by water inlet temperature. When the pool requires higher heating load, it will use full compressor quantity; when water temperature is close to target set temperature, it requires lower heating load, then it will turn off some compressors and just use the compressor quantity according to the real heat load.

PRODUCT DETAIL

Auto Pool Heating / Cooling Switch

FANTASTIC swimming pool heat pump has auto mode to keep the pool water temperature. For example, if the pool target water temperature is set to 28℃, when the actual pool water temperature is lower than 28℃, heat pump will start heating automatically; when the actual pool water temperature is high than 28℃, it will start cooling automatically.

PRODUCT DETAIL

High COP

With COP of 5.7 at working condition of 24℃ / 19℃ (DB / WB), FANTASTIC swimming pool heat pump has high efficiency for both pool cooling and heating.

PRODUCT DETAIL

Centralized Control

FANTSTIC commercial heat pump can be paralleled controlled of up to 16 units at the same time by one centralized controller. This makes temperature adjustment and failure review much easier and more practical. By incorporating the master-slave control into the design, the units in the whole system can work together with higher efficiency without interfered by any failure of the slave units during operation.

PRODUCT DETAIL

Spiral Titanium Heat Exchanger

FANTASTIC patented titanium heat exhcanger is with spiral tubes insie, the titanium coil with higher heat efficiency and anti-corrosion, which makes the unit longer working life. Besides, FANTASTIC has patented shell certified ETL for North America.

PRODUCT DETAIL

Smart Wifi Appp control by phone

FANTASTIC  pool heat pump has the Wi-Fi Remote control, which means you can control and know the working situation of your  pool heat pump on your Smartphone at anytime and anywhere, even if you are away from home...

Air To Water Commercial Swimming pool Heat Pump
Model   FPHC060T3 FPHC080T3 FPHC100T3 FPHC120T3 FPHC150T3 FPHC200T3 FPHC250T3 FPHC300T3 FPHC400T3 FPHC500T3
Heating Conditon: Ambient: 27℃; Water: 26℃
Heating Capacity kW 30.0 40.0 50.0 60.0 75.0 100.0 125.0 150.0 200.0 250.0
BTU/h 68300 136500 170600 204800 255900 341200 426500 511800 682400 853000
COP W/W 5.87 5.87 5.87 5.87 5.87 5.87 5.87 5.87 5.87 5.87
Input Power  kW 3.41 6.81 8.52 10.22 12.78 17.04 21.29 25.55 34.07 42.59
Input Current A 6.5 12.9 16.2 19.4 24.3 32.4 40.4 48.5 64.7 80.9
Heating Conditon: Ambient: 24℃; Water: 26℃
Heating Capacity kW 25.8 34.4 43.0 51.6 64.5 86.0 107.5 129.0 172.0 215.0
BTU/h 88100 117400 146800 176100 220100 293500 366800 440200 586900 733600
COP W/W 5.3 5.3 5.3 5.3 5.3 5.3 5.3 5.3 5.3 5.3
Input Power kW 4.87 6.49 8.11 9.74 12.17 16.23 20.28 24.34 32.45 40.57
Input Current A 9.2 12.3 15.4 18.5 23.1 30.8 38.5 46.2 61.6 77.0
Heating Conditon: Ambient: 15℃; Water: 26℃
Heating Capacity kW 22.8 30.4 38.0 45.6 57.0 76.0 95.0 114.0 152.0 190.0
BTU/h 77800 103800 129700 155600 194500 259400 324200 389000 518700 648300
COP W/W 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.7
Input Power kW 4.85 6.47 8.09 9.70 12.13 16.17 20.21 24.26 32.34 40.43
Input Current A 9.2 12.3 15.4 18.4 23.0 30.7 38.4 46.1 61.4 76.8
Power Supply V/PH/Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Water Out let/Water In let inch 1–1/2" 2" 2" 2" 2" 2" 2–1/2" 3" 4" 4"
Water Flow Volume (range) m3/h 7.39~14.79 9.86~19.72 12.32~24.65 14.79~29.58 18.49~36.97 24.65~49.30 30.81~61.62 36.97~73.95 49.30~98.60 61.62~123.24
Fan Direction   vertical vertical vertical vertical vertical vertical vertical vertical vertical vertical
Refrigerant Type R32/R410a
