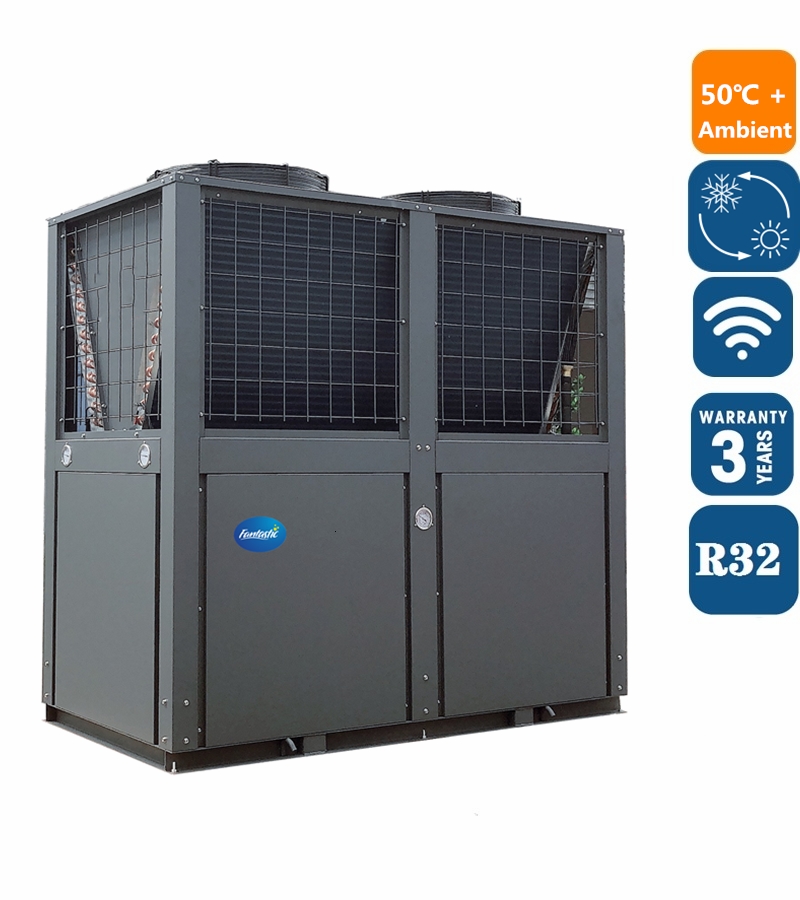

T3 Air Source Pool Heat Pump

Main Features:

• T3 technology, can work under +50℃ or more ambient

• Wide heating capacity up to 85 kw or bigger

• Control working compressor quantity for more energy saving

• Centralized Control for multi heat pumps work together

• Centralized Control

• EEV technology

• Super low noise working

• Golden fin heat exchanger

• Golden fin heat exchanger for option

• Auto Pool Heating / Cooling switch

• High COP

• Milt-Protection

• APP control for optional

Core Strengths

Design for 50℃+ ambient place - T3 swimming pool heat pump combines T3 compressor and T3 technology, T3 FANTASTIC swimming pool heat pump can work under 50 ℃ + ambient for East Middle Place

Affordability - As the high COP of FANTASTIC T3 pool heat pump, it can heat your pool for about 25% of the cost of heating with gas, High COP means more energy saving.

Ex. $ 1 input - $ 5.8 of energy output at COP of 5.8

Long life with good quality components - FANTASTIC T3 heat pump heat your pool whatever rain or shine, and built-in spiral titanium heat exchanger, the casing can be galvanized metal or stainless steel for choice, golden fin air heat exchanger, EEV, soft start, etc. in your pool heater.

Auto Pool Heating / Cooling mode switch - FANTASTIC T3 pool heater has an auto model to keep the pool water temperature. For example, if set pool target water temperature is 28℃,when pool actual water temperature is below 28℃, heat pump will start heating automatically, when pool actual water temperature is above 28℃,it will start cooling automatically.

Smart central control - Multiple T3 heat pumps can work together and be controlled in one main controller, which will make it easier for the user to check and control the heat pump work. What's more, the FANTASTIC intelligent central control can select the number of heat pumps in the working pool according to the actual situation, saving your electricity bill all the time.

PRODUCT DETAIL

T3 Technology

T3 swimming pool heat pump combine T3 compressor and T3 technology, T3 FANTASTIC swimming pool heat pump can work under 50 ℃ + for East Middle Place.

PRODUCT DETAIL

Wide Heating Capacity Range

The heating capacity of FANTASTIC swimming pool heat pump is up to 500 Kw or bigger. Suitable for different size of pool demand, no matter for household or commercial projects.

PRODUCT DETAIL

Auto Pool Heating / Cooling Switch

FANTASTIC swimming pool heat pump has auto model to keep the pool water temperature. For example, if set pool target water temperature is 28℃, when pool actual water temperature is below 28℃, heat pump will start heating automatically, when pool actual water temperature is above 28℃, it will start cooling automatically.

PRODUCT DETAIL

High COP

With COP of 5.7 at working condition of 24o C / 19o C (DB / WB), FANTASTIC swimming pool heat pump has high e¬iciency for either pool cooling or heating.

PRODUCT DETAIL

Centralized Control

FANTSTIC Commercial heat pump can be control up to 16 units of swimming pool heat pump at the same time by one controller comes equipped with centralized control that makes temperature adjustment and failure review much easier and more practical. By incorporating the master-slave control into the design, the whole units can work together with higher efficiency without interfered by any failure of the slave unit during operation.

PRODUCT DETAIL

Wifi Smart  App Conrol by phone

FANTASTIC  pool heat pump has the Wi-Fi Remote control, which means you can control and know the working situation of your   pool heat pump on your Smartphone at anytime and anywhere, even if you are away from home..

Electric Expansion Valve

Wider working temperature range, faster and more accurate refrigerant flow control than capillary and mechanical expansion valve. Best choice to achieve higher efficiency and energy-saving.

PRODUCT DETAIL

Fin Heat Exchanger

Highly customize, at least three kinds of fin heat exchangers can be opted, including the golden fin heat exchanger, blue fin heat exchanger, hydrophilic fin heat exchanger.

PRODUCT DETAIL

T3 Air To Water  Swimming pool Heat Pump
Model   FT3PHC030T3 FT3PHC040T3 FT3PHC060T3 FT3PHC080T3 FT3PHC100T3 FT3PHC120T3 FT3PHC180T3 FT3PHC200T3
Heating Condition: Ambient: 27℃; Water: 26℃
Heating Capacity kW 15.0 20.0 30.0 40.0 50.0 60.0 90.0 100.0
BTU/h 51200 68300 68300 136500 170600 204800 307080 341200
COP W/W 5.9 5.9 5.9 5.9 5.9 5.9 5.9 5.9
Input Power  kW 2.56 3.41 3.41 6.81 8.52 10.22 15.33 17.04
Input Current A 4.9 6.5 6.5 12.9 16.2 19.4 29.2 32.4
Heating Conditoin: Ambient: 24℃; Water: 26℃
Heating Capacity kW 13.0 17.0 25.0 35.0 45.0 55.0 75.0 85.0
BTU/h 44400 58100 85300 119500 153600 187700 255900 290100
COP W/W 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Input Power  kW 2.36 3.09 4.55 6.36 8.18 10.00 13.64 15.45
Input Current A 4.5 5.9 8.6 12.1 15.5 19.0 25.9 29.4
Heating Conditoin: Ambient: 15℃; Water: 26℃
Heating Capacity kW 10.5 14.0 21.0 28.0 35.0 42.0 63.0 70.0
BTU/h 35900 47800 71700 95600 119500 143400 215000 238900
COP W/W 4.6 4.6 4.6 4.6 4.6 4.6 4.6 4.6
Input Power  kW 2.28 3.04 4.57 6.09 7.61 9.13 13.70 15.22
Input Current A 4.3 5.8 8.7 11.6 14.5 17.3 26.0 28.9
Cooling Conditoin: Ambient: 43℃; Water: 30℃
Cooling Capacity kW 9.0 12.0 18.0 24.0 30.0 36.0 54.0 60.0
BTU/h 30800 41000 61500 81900 102400 122900 184300 204800
COP W/W 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0
Input Power  kW 3.00 4.00 6.00 8.00 10.00 12.00 18.00 20.00
Input Current A 5.7 7.6 11.4 15.2 19.0 22.8 34.2 38.0
 Power Supply V/PH/Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
 Water Out let/Water In let inch 1–1/2" 1–1/2" 1–1/2" 2" 2" 2" 3" 3"
 Water Flow Volume m3/h 3.73 4.87 7.17 10.03 12.90 15.76 21.50 24.36
 Refrigerant Type   R410a
