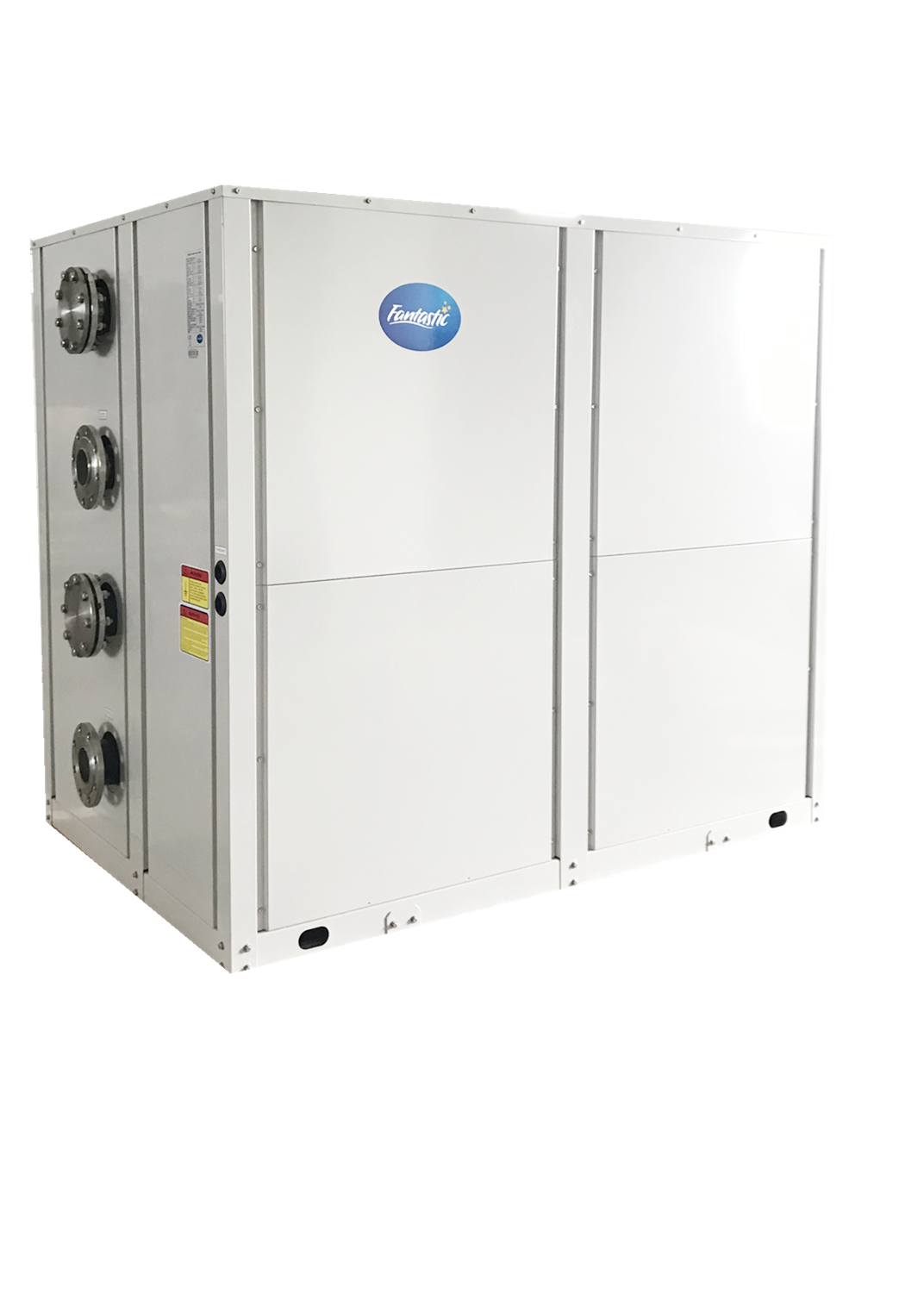

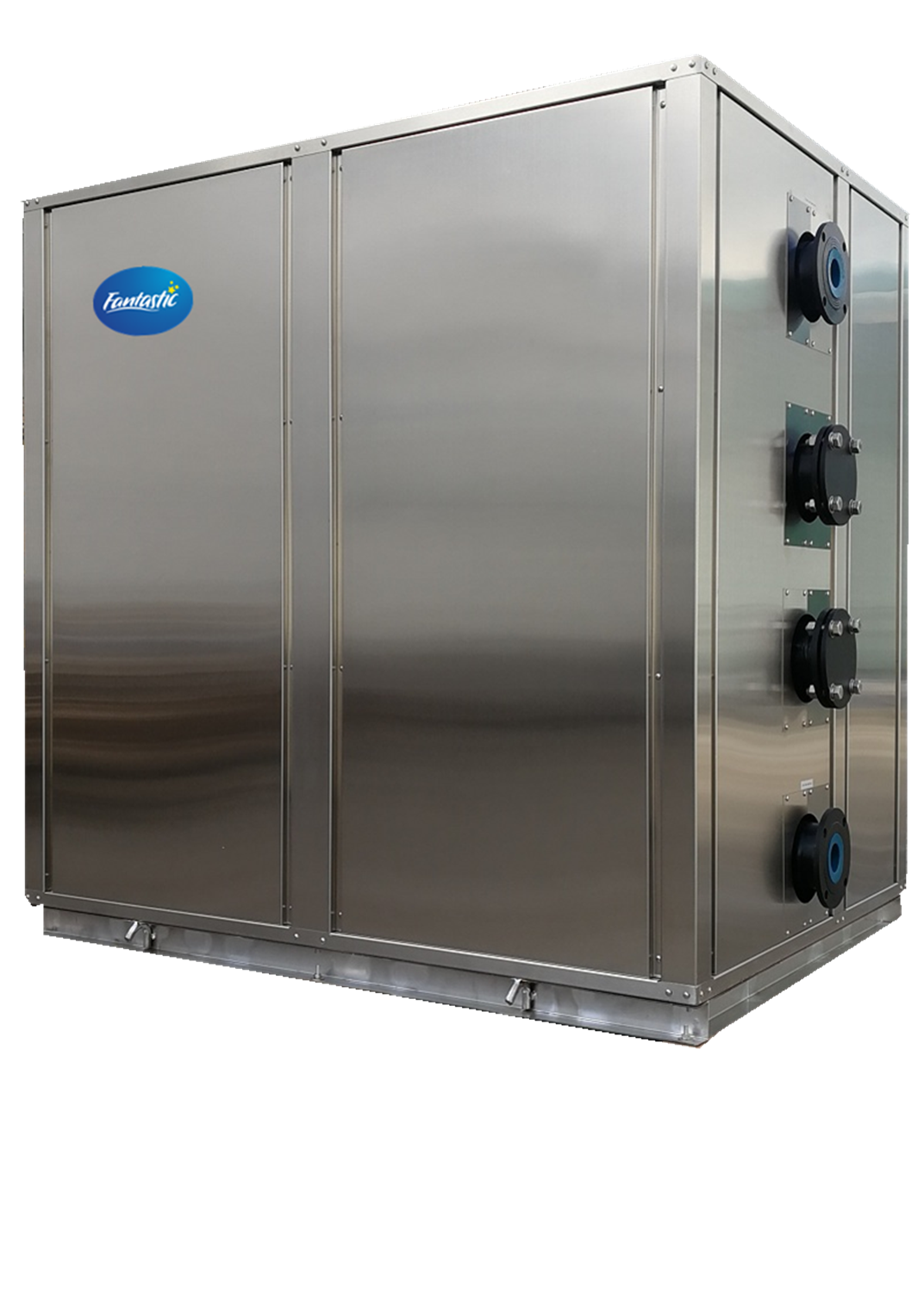

Water to Water Ground Source Heat Pump

Main Features:

• R32 or R410a

• 3.5 kw to 300 kw or bigger

• Function: Hot Water / Cold water / heating / cooling

• Centralized Control

• Copland / Danfoss Compressor

• Electric expansion valve

• High Efficient heat exchanger or tube in Shell heat exchanger

• Customized Design as customers'projects

Applications:

Residential and commercial hot water, heating / cooling: House, Apartment, Vila, Hotel, Hospital, Spa, Holiday Center, and so on.

Core Strengths

PRODUCT DETAIL

Wide Heating Capacity Range

The heating capacity of FANTASTIC Air to heat pump is up to 300 Kw or bigger. Suitable for different size of project demand, no matter for household or commercial using. Customized Design for different customers’ projects.

Lower Running Cost Than Traditional Heat Pump

FANTASTIC heat pump has precise energy stage settings ensures the working unit to achieve the desired energy saving efficient. Heat pump will change compressor using quantity as the real heat required by water inlet temperature. When need higher heating load, it will use full compressor quantity, when water temperature close to target set temperature, it need lower heating load, then will off some compressor and just use the compressor quantity as the real heat load.

PRODUCT DETAIL

Using Titanium Or Copper Heat Exchanger for Option

The outside of the titanium or copper tube is screw twisted fin tube design, compared with normal smooth copper tube, greatly increase the heat exchange area between the refrigerant and water,ensure that the refrigerant and water can fully heat exchange. There is no water flow blind zone in

the water passage, the water flow velocity is uniform, the heater is not easy to partially freeze, not easy to scale.

Intelligent Curve Economic Control Mode

Intelligent working mode with winter Heating Curve,according to the change of water temperature,the heat pump will calculate and supply the most suitable water temperature automatically to save much energy and provide more comfortable and enough heating / cooling.

PRODUCT DETAIL

Centralized Control

FANTSTIC controller can control up to 16 units of heat pump at the same time by one controller comes equipped with centralized control that makes temperature adjustment and failure review much easier and more practical. By incorporating the master-slave control into the design, the whole units can work together with higher efficiency without interfered by any failure of the slave unit during operation, and can be choose all heat pump work at the same time or only some of heat pumps work according the actual demand automatically, more energy-saving.

PRODUCT DETAIL

Super-heat Management

FANTASTIC heat pump increases Heating capacity and extend the Operation life by TEV, and increases COP and limit the discharge temperature under safe level by EEV, and less the defrosting time to make heat pump put more time on heating and more energy-saving.

PRODUCT DETAIL

l Manufacturing Photo

Water source heat pump (Heating, cooling, hot water)
Model		FWWHCD030	FWWHCD0503	FWWHCD0603	FWWHC10603	FWWHCD1203	FWWHCD1403	FWWHCD2003	FWWHCD2503	FWWHCD3003	FWWHCD3603	FWWHCD4003	FWWHCD5003	FWWHCD0603	FWWHCD10003
Heating capactiy①	KW	9.6	16.0	19.2	32.0	38.4	44.8	64.0	80.0	96.0	115.2	128.0	168.0	192.0	320.0
Heating capactiy①	BTU/h	32800	54600	65500	109200	131000	152900	218400	273000	327600	393100	436700	573200	655100	1091800
COP①	W/W	5.4	5.4	5.4	5.4	5.4	5.4	5.4	5.4	5.4	5.4	5.4	5.4	5.4	5.4
Input power (Heating)①	KW	1.78	2.96	3.56	5.93	7.11	8.30	11.85	14.81	17.78	21.33	23.70	31.11	35.56	59.26
Input current (Heating)①	A	8.1	5.6	6.8	11.3	13.5	15.8	22.5	28.1	33.8	40.5	45.0	59.1	67.5	112.5
Heating capactiy②	KW	9.0	15.0	18.0	30.0	36.0	42.0	60.0	75.0	90.0	108.0	120.0	150.0	180.0	300.0
Heating capactiy②	BTU/h	30700	51200	61400	102400	122800	143300	204700	255900	307100	368500	409400	511800	614200	1023600
COP②	W/W	4.05	4.05	4.05	4.05	4.05	4.05	4.05	4.05	4.05	4.05	4.05	4.05	4.05	4.05
Input power (Heating)②	KW	2.22	3.70	4.44	7.41	8.89	10.37	14.81	18.52	22.22	26.67	29.63	37.04	44.44	74.07
Input current (Heating)②	A	10.1	7.0	8.4	14.1	16.9	19.7	28.1	35.2	42.2	50.6	56.3	70.3	84.4	140.7
Cooling capacity	KW	7.8	13.0	15.6	26.0	31.2	36.4	50.0	65.0	75.0	90.0	100.0	120.0	150.0	250.0
Cooling capacity	BUT/h	26600	44400	53200	88700	106500	124200	170600	221800	255900	307100	341200	409400	511800	853000
Input power (Cooling)	KW	1.86	3.08	3.70	6.17	7.32	8.60	11.90	15.29	17.80	21.40	23.80	28.24	35.70	59.50
Input current (Cooling)	A	8.5	5.8	7.0	11.7	13.9	16.3	22.6	29.0	33.8	40.6	45.2	53.6	67.8	113.0
Power supply	V/PH/Hz	220/1/50	380/3/50
Compressor		Rotary	Scroll
Max running current	A	14.5	10.1	12.2	20.3	24.3	28.4	40.5	50.7	60.8	72.9	81.0	101.3	121.6	202.6
Noise	dB(A）	50	50	51	53	55	55	56	56	57	59	62	62	65	67
Water inlet/outlet	inch	1″	1″	1″	1-1/4″	1-1/4″	1-1/2″	2″	3″	3″	3″	4″	4″	4″	5″
Water flow volume (5~3℃difference)	m³/h	1.7~2.6	2.8~4.3	3.3~5.2	5.5~8.6	6.6~10.3	7.7~12.0	11.0~17.2	13.8~21.5	16.5~25.7	19.8~30.9	22.0~34.4	28.9~43.0	33.0~51.6	55.0~86.0
Refrigerant	R22/R410A/R407C
Unit dimension (L/M/H)	mm	670/600/760	755/665/725	755/665/725	840/720/1160	840/720/1160	840/720/1160	1220/1100/1515	1220/1100/1515	1630/1100/1515	1630/1100/1515	2010/1100/1515	2010/1100/1515
Shipping dimension (L/M/H)	mm	720/650/860	805/715/825	805/715/825	890/770/1260	890/770/1260	890/770/1260	1290/1170/1715	1290/1170/1715	1750/1170/1715	1750/1170/1715	2130/1170/1715	2130/1170/1715
Remark: (1) Cooling: Air condition side inlet/outlet: 12℃/7℃, Hot source side inlet/outlet:30℃/35℃ (2) ①Heating: Air condition side inlet/outlet: 30℃/35℃, Hot source side inlet/outlet:10℃/- (3) ②Heating: Air condition side inlet/outlet: 40℃/45℃, Hot source side inlet/outlet:10℃/- (4) Running temperature: Ambient temperature-30℃~50℃, Hot source water temperature 8℃~38℃
